Vertiv Liebert PSI5 UPS - 750VA 675W 120V Line Interactive AVR Mini Tower UPS, 0.9 Power Factor

$640.00
$440.75 SAVE $199.25
6 availableas of 12:39 AM

Order within for shipment today

Should arrive by Tue, Nov 3 with free ground shipping

Compliance, certifications and origin

  • RoHS
  • REACH
  • Origin: China
Rated excellent by our customers Read our reviews

Secure checkoutISO 9001:2015 and CMMC certifiedFamily owned since 1982

Free shipping on most items when you spend $100 or more.

Real people answer: chat with us, email customerservice@colamco.com, or call 1-800-692-8757, Monday to Friday, 8am to 5pm EST.

Protect this device

Plans are optional and can be left off. Your order is unchanged unless you add one.

Secure checkoutISO 9001:2015 and CMMC certifiedFamily owned since 1982

Free shipping on most items when you spend $100 or more.

Real people answer: chat with us, email customerservice@colamco.com, or call 1-800-692-8757, Monday to Friday, 8am to 5pm EST.

Overview

View user manual

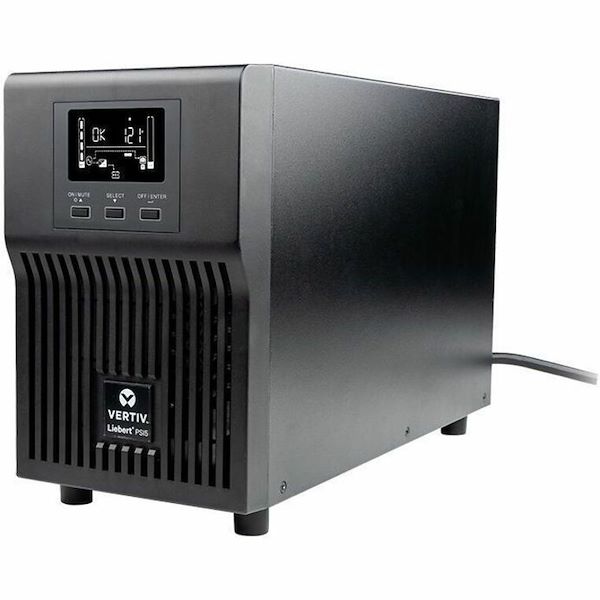

The Vertiv Liebert PSI5-750MT120 is a 750VA/675W, 120V line-interactive UPS built for edge and distributed IT environments. This compact mini tower chassis is 14.8 inches deep with a 0.9 output power factor (PF) and under 6ms transfer time. An LCD display enables quick status checks, and a programmable outlet segment allows management of unresponsive devices or prioritizes critical loads. Add an optional network management card for remote monitoring, management, and firmware updates.
More from the manufacturer

Technical specifications

General Information

Manufacturer Vertiv
Manufacturer Part Number PSI5-750MT120
Manufacturer Website Address http://www.vertiv.com/
Brand Name Vertiv Liebert
Product Series PSI5
Product Model PSI5-750MT120
Product Name PSI5-750MT120 UPS
Product Type Line-interactive UPS

Technical Information

AVR Yes
Plug / Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 5 x NEMA 5-15R
Dataline Protection RJ-11RJ-45
Transfer Time 4 ms
Phase Single Phase
Application / Usage Electronic DeviceHomeOfficeMission Critical EquipmentNetwork ClosetData CenterEducation

Power Description

Load Capacity (VA) 750 VA
Load Capacity (Watt) 675 W
Input Voltage 120 V AC
Input Voltage Range 75 V AC - 146 V AC
Output Voltage 100 V AC110 V AC115 V AC120 V AC125 V AC
Input Frequency 65 Hz
Output Frequency 60 Hz
Waveform Type Pure Sine Wave

Interfaces/Ports

Serial Port No
Network (RJ-45) Yes
EPO Port Yes
USB (HID Compliant) Port Yes

Battery Information

DC System Voltage 12 V DC
Number of Batteries 2
Battery Characteristics Valve-regulated, Non-spillable
Battery Chemistry Lead Acid
Battery Size 12V
Battery Capacity 9000 mAh
Backup / Run Time (Full Load) 6 Minute
Backup / Run Time (Half Load) 18 Minute
Typical Battery Recharge Time 8 Hour
Hot Swappable Yes

Environmental Conditions

Maximum Operating Temperature 104°F (40°C)
Storage Temperature 5°F (-15°C) - 122°F (50°C)
Maximum Operating Elevation 9842.52 ft
Operating Humidity 20% - 90%
Storage Relative Humidity 20% - 90%

Physical Characteristics

Height 8.70"
Width 5.70"
Depth 14.80"
Form Factor Tower
Weight (Approximate) 24.70 lb

Miscellaneous

Package Contents
  • PSI5-750MT120 UPS
  • USB Cable
  • Safety Manual
  • Quick Installation Guide
Software Included Power Insight 2.2
Energy Star No
Green Compliant Yes
Country of Origin China
TAA Compliant No
Environmental Compliance Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty 3 Year
