Aten CM1284 KVM Switchbox
Aten CM1284 KVM Switchbox original - Thumbnail

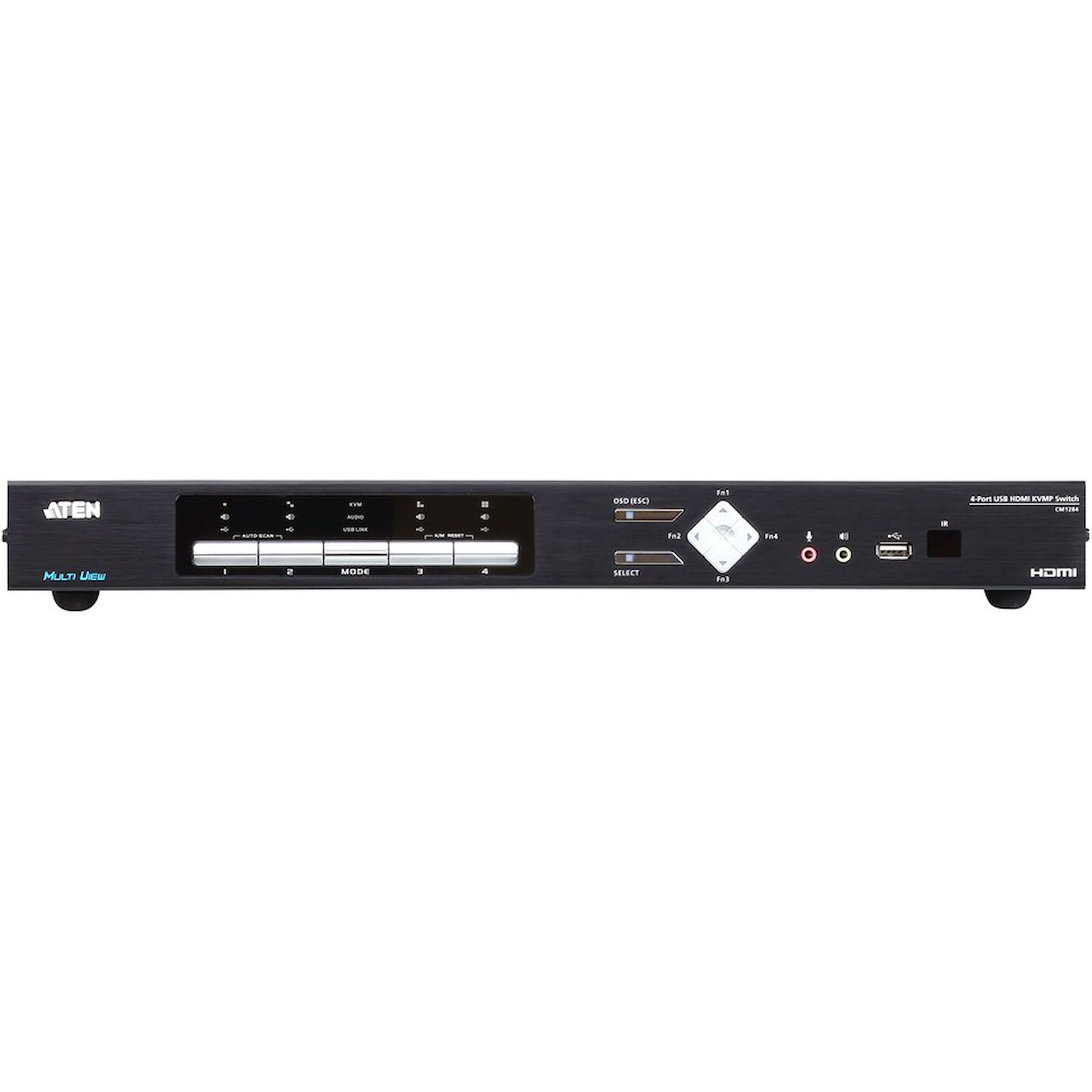

Aten CM1284 KVM Switchbox front - Thumbnail
Aten CM1284 KVM Switchbox rear - Thumbnail

ATEN CM1284 4-Port USB HDMI Multi-View KVMP Switch

MFG Part #: CM1284
 COLAMCO Part #: 1-1694307
 UPC #: 672792009471


          ( reviews) (write a review)
ATEN CM1284 4-Port USB HDMI Multi-View KVMP Switch

4 Computer(s) - 2 Local User(s) - 4096 x 2160 - 2 x Network (RJ-45) - 8 x USB - 6 x HDMI - Desktop, Rack-mountable

  • Multi-view console controls up to four video sources on one screen with display modes including Quad View, Picture in Picture (PiP), Picture by Picture (PbP), and Picture on Picture (PoP)
  • Features dual output on console side - a multi-view output and a full screen output
  • Easily resizes and / or reposition any PiP or PbP to suit users' viewing needs
  • System configuration via front panel, OSD, IR Remote, and RS-232 commands - display mode and port selection
  • Supports superior video quality - Up to 4K (4096 x 2160 @ 30 Hz) ; YCbCr 4 :2 : 2
Updating...
Checking stock...
available (as of - Refresh Inventory )

FREE SHIPPING ?

Close x
Stock Notification

Notify me when this item comes back in stock

Please note that popular items often become available in small quantities and can sell out again quickly.

Aten CM1284

Aten CM1284 KVM Switchbox

About the Aten CM1284

ATEN CM1284 4-Port USB HDMI Multi-View KVMP™ Switch improves the operational efficiency of real-time monitoring. The CM1284 allows users to manage the data more efficiently by allowing multiple sources to be selected, switched, and displayed at the same time with independent keyboard and mouse control.

Advanced video support provides a better-defined HDMI connection with video resolutions up to 4K (4096 x 2160 @ 30 Hz). The CM1284 guarantees users a real-time monitoring functionality by offering dual outputs on console side. One provides the following display modes: Quad View, Picture in Picture (PiP), Picture by Picture (PbP), Picture on Picture (PoP), and the other one provides Full Screen mode. Featuring Boundless Switching, the CM1284 allows users to simply move the mouse cursor across windows to switch to other video sources. This makes it easier to instantly access and control the target computer.

Incorporating Daisy Chain Control (DCC) capability, users are allowed to control up to 3 additional CM1284 units via a single console. In addition, CM1284 can be cascaded up to 2 levels to reach the maximum of 16 video sources to be simultaneously selected, switched, and displayed with independent keyboard and mouse control.

Engineered to meet the ever-increasing demand for multi-view functionality, the CM1284 is specifically designed for where real-time monitoring is needed such as aviation industry, financial trading, and medical application.

Technical Specifications of the Aten

General Information
Manufacturer ATEN Technology, Inc
Manufacturer Part Number CM1284
Manufacturer Website Address http://www.aten.com/us/en/
Brand Name ATEN
Product Model CM1284
Product Name CM1284 4-Port USB HDMI Multi-View KVMP Switch
Packaged Quantity 1
Product Type KVM Switchbox

Technical Information
Number of Computers Supported 4
Number of Local Users Supported 2

Video
Maximum Video Resolution 4096 x 2160

Interfaces/Ports
Network (RJ-45) Yes
USB Yes
HDMI Yes
Number of Network (RJ-45) Ports 2
Number of USB Ports 8
Number of HDMI Ports 6

Power Description
Input Voltage
  • 230 V AC
  • 120 V AC
Input Voltage Range 100V AC to 240V AC

Physical Characteristics
Form Factor
  • Desktop
  • Rack-mountable
Height 1.7"
Width 17.2"
Depth 6.5"
Weight (Approximate) 5.42 lb

Miscellaneous
Package Contents
  • CM1284 4-Port USB HDMI Multi-View KVMP Switch
  • 4 x USB HDMI Cables
  • 1 x Power Cord
  • 1 x IR Remote Control
  • 1 x Rack Mount Kit
  • 1 x User Instructions
Green Compliant Yes
Environmental Compliance
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty 3 Year
